LP Window Controls

ACK4 Chain Actuator

ACK4 Chain Actuator

£139.99£499.99

Clear
SKU: N/A Category:

Description

Description

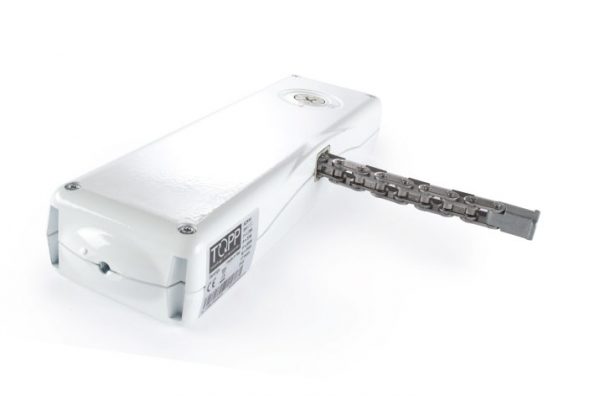

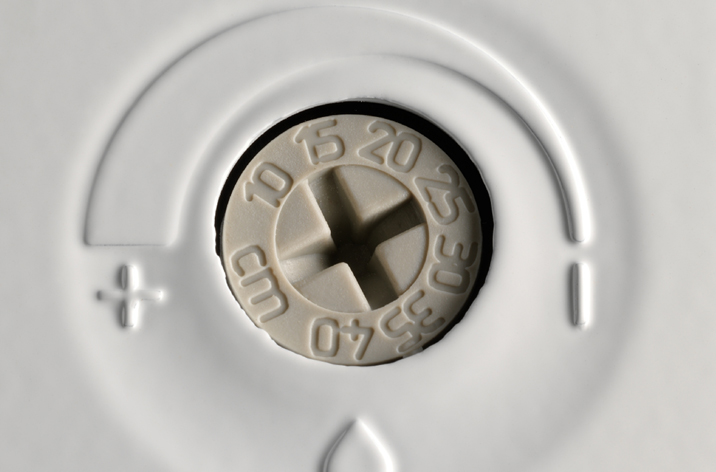

Electric actuator TOPP model ACK4 with double-link chain made of STAINLES steel, contained in a die-cast body of aluminium alloy coated by epoxy powders, complete with support and fitting accessories for top and bottom hung windows. Operation at 230V~ 50Hz, as an alternative, at 24V d.c. Max. traction and thrust force 300N. Max> stroke of 400 mm. Electronic stroke-end adjustable every 5 cm. by an external hand-grip. Electronics with acoustic device that warns of any eventual incorrect installations. Electronic stroke end through an external hand-grip on both sides of the actuator body. If required, USA2 synchronization unit available, for the simultaneous running of 2 actuators on the same window. Protection degree of electric devices IP55. CE marked device complying with the following directives: EEC 89/336, EEC 73/23 and following amendments.

Brackets Sold Separately

Additional information

Additional information

Type

230 Volt, 230 Volt Synchro (Pair), 24 Volt, 24 Volt Smoke (RWA)

Colour

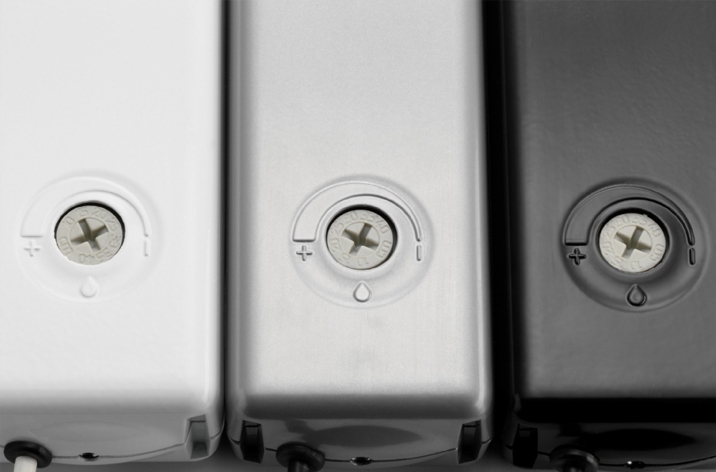

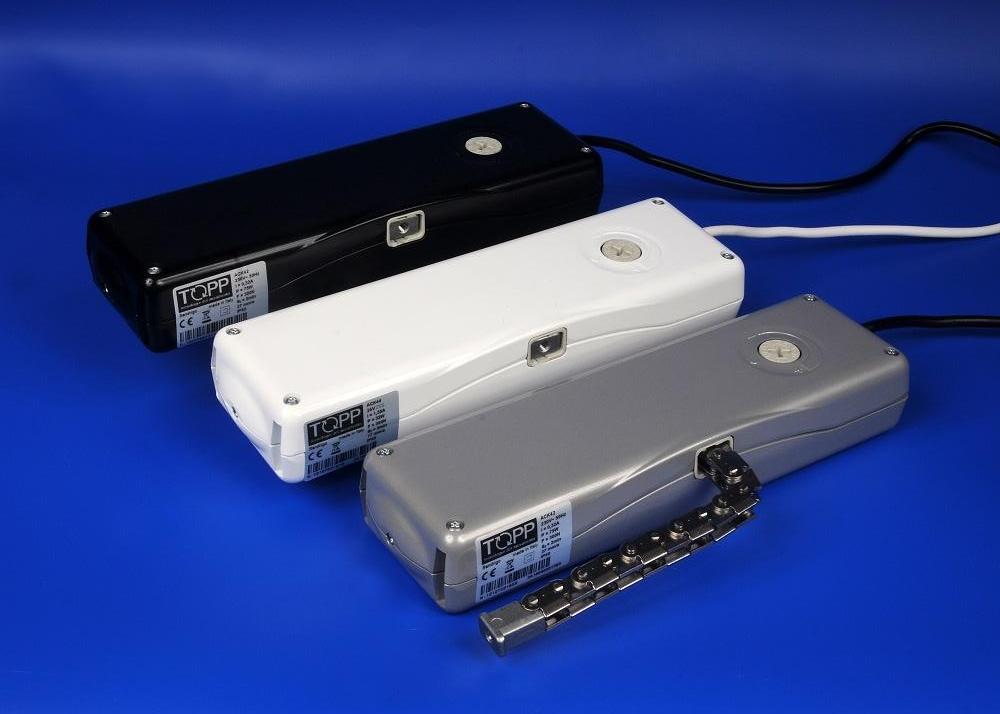

Black, Grey, White

Document Downloads

Technical Data

Technical Data

 MAC 41/42MAC 43/44
Part number224405224407
Voltage supply230v ~ 50Hz24V c.c.
Thrust Force300N300N
Traction Force300N300N
Stroke-end adjustable at10, 15, 20, 2, 30, 35, 40 cm10, 15, 20, 2, 30, 35, 40 cm
Absorbed Current0.26 A 2,10 A
Loadless translation speed28mm/s18mm/s
Idle stroke duration14 s22 s
Double electrical insulationYesLow Voltage
ServiceS2 of 3 minS2 of 3 min
Working temperature-10 +65 c-10 +65 c
Electrical devices protection classIP55IP55
Regulation of attachment to window casing10mm10mm
Connection of two or more actuators in parallel YesYes
Patented chain posision controlYesYes
Swivel version224421224419
